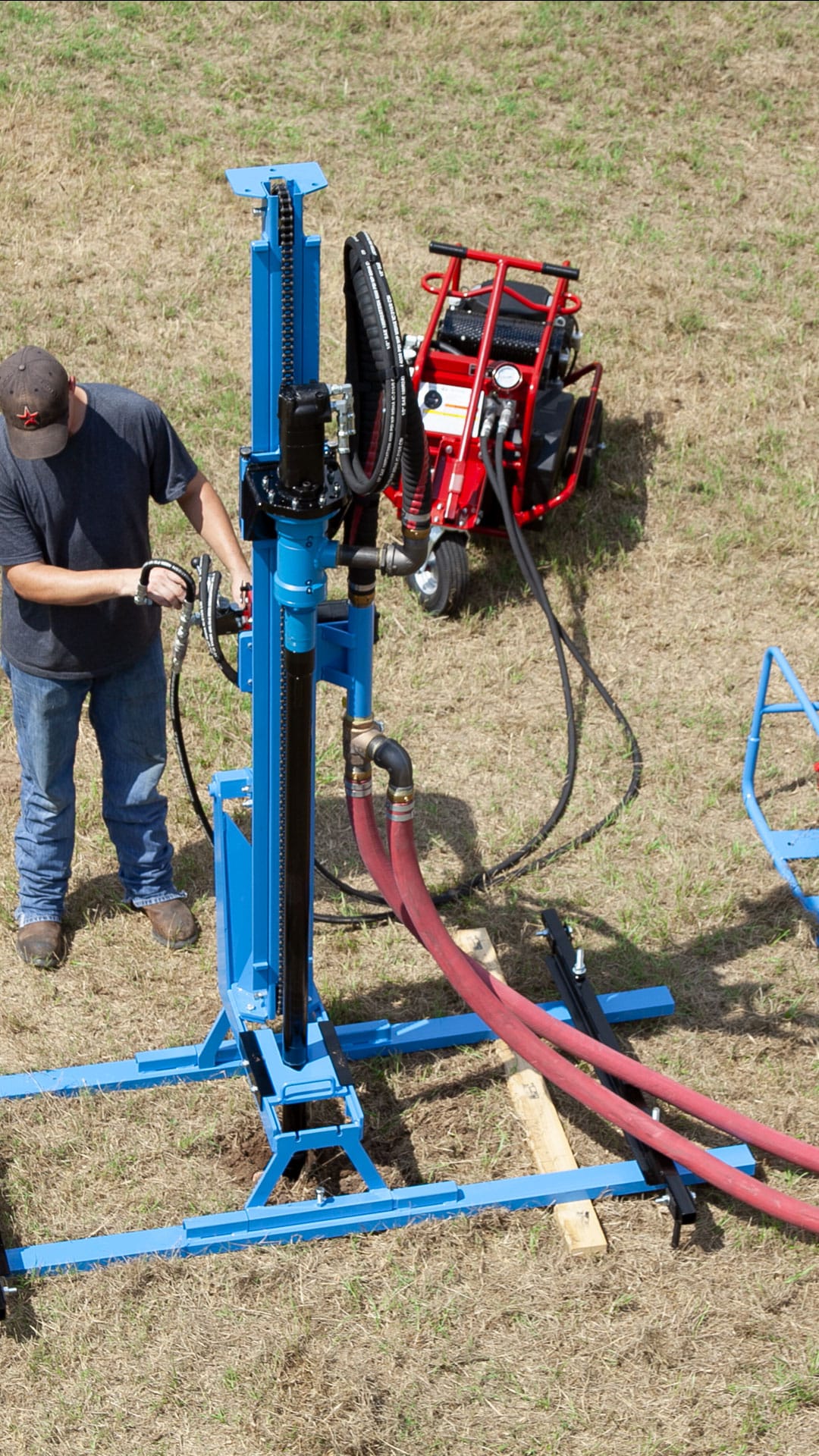

LS200H+ Water Well Drill
The LS200H+ features the same operator-inspired design as the LS200H, but with a more robust hydraulic system and more powerful engine. Its high-capacity, load-bearing swivel coupled with a high-pressure hydraulic motor provides enhanced reliability and serviceability. With the addition of tricone roller bits and drill collars, the LS200H+ efficiently drills to 200 feet, even in rock formations. Its heavy-duty frame and reinforced base provide added durability.
- Drilling Depth: 200 ft (61 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: 5,000-lbs/Up to 5,000-lbs (2,268 kg)
- Soil Types: Sand, clay and soft and hard rock formations
- Applications: Water well drilling
Downloads
Hydraulic Rotary and Swivel
Control Valves
Table Base

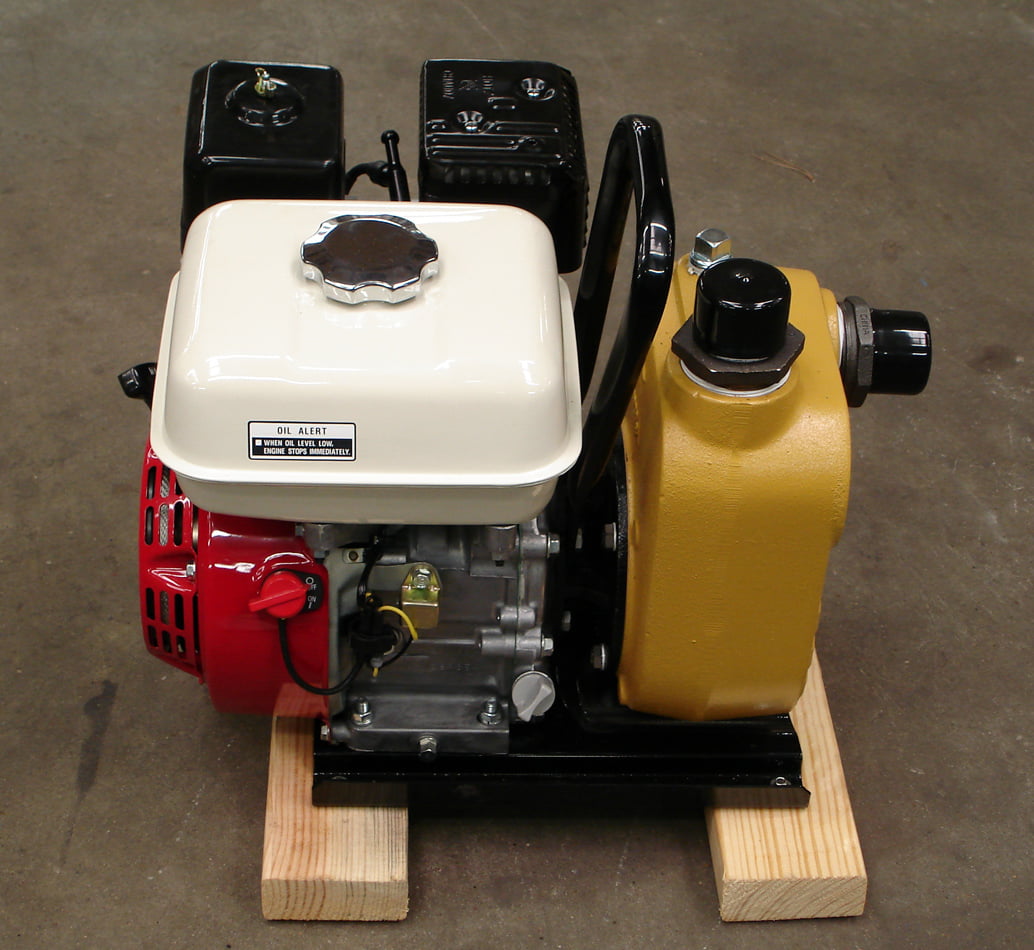

5.5HP Mud Pump
Drill Rig Package
- Mud pump
- 2,500-psi hydraulic system
- Three 2-inch-diameter mud hoses (one 10-foot suction and two 10-foot discharge/bypass)
- 200 feet of 2-inch diameter M250 drill pipe with straight thread tool joints
- 4- and 6-inch step drag bits
- 6- and 7-inch reamers
- Toolbox and spare parts
Optional Components
- Anchor kit

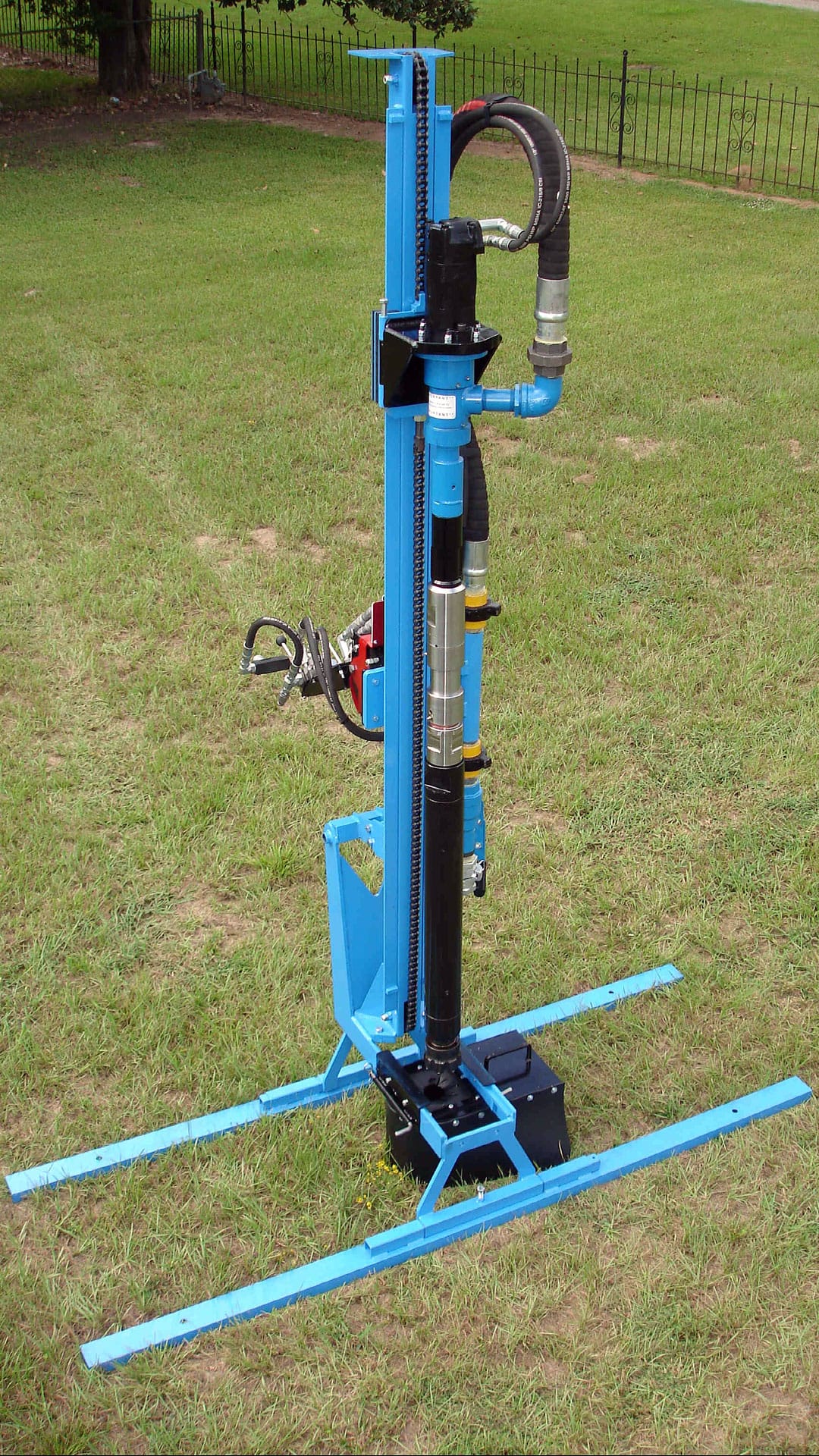

- Down-the-hole hammer package
- Wheel kit
- Diesel engines for hydraulic system and mud pump
Specifications
SPECIFICATIONS
Drilling Depth
Borehole Diameter
Pull/Push-Back Force
Mast Weight
Max Drilling Torque
Speed
Hydraulic Power Source
Hydraulic System
Fuel Tank Capacity
Hydraulic Reservoir
Mud Pump
Max Head
Max Flow
Discharge/Suction
Frame
Transportation
LS200H+
200 ft (61 m)
6 in (15 cm)
Up to 5,000 lbs (2,268 kg)
190 lbs (86.2 kg)
655 ft-lbs (888 N-m)
95 rpm at 10 gpm (37.8 L/m)
Honda 20 hp (14.9 kW)
10 gpm (37.85 L/m) at 3,000 psi
5 gal (18.9 L)
5 gal (18.9 L)
Honda 8 hp (4.1 kW)
100 ft (30.5 m)
165 gpm (624.6 L/m)
2 in (5.08 cm)
Heavy-duty welded steel
Packs into two separate crates
